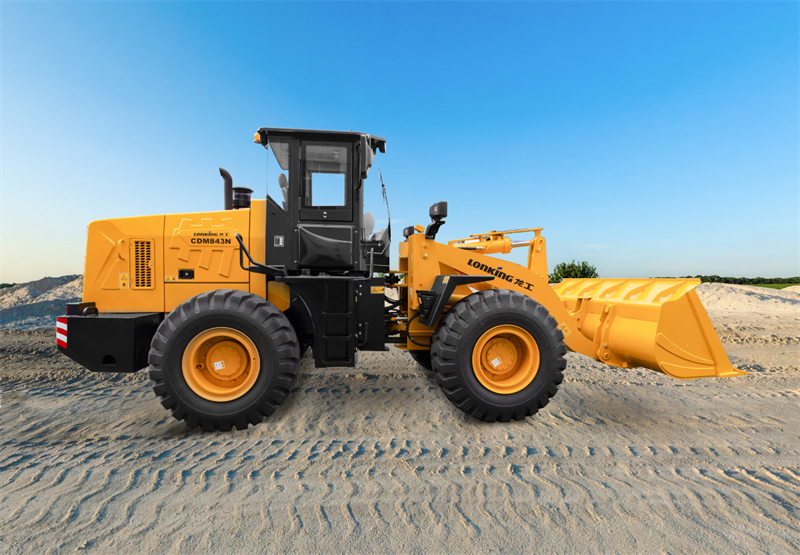

    Lonking CDM843 wheel loader 4ton with 2.3m3 bucket Weichai WP6G175E22 engine

    Ask Lasest Price
    Brand Name : Lonking
    Model Number : CDM843
    Certification : ISO 9001-2008
    Delivery Time : 20 days after receiving deposit
    • Product Details
    • Company Profile

    Lonking CDM843 wheel loader 4ton with 2.3m3 bucket Weichai WP6G175E22 engine

    Lonking CDM843 wheel loader 4ton with 2.3m3 bucket Weichai WP6G175E22 engine


    Top Brand Wheel Loader Manufacturer


    200,000 Units More Working Worldwide


    Pay Loader, Chinese Pay Loader, Chinese Wheel Loader, Chinese 3T Wheel Loader, Chinese 5T Wheel Loader,
    Chinese Large Wheel Loader, Chinese Small Wheel Loader, 1T-2.3T wheel loader

    Cummins Engines and ZF Transmission & Axles
    Pilot Control System, Automatic Leveling
    Complete line of applications and accessories
    Easy maintenance & Outstanding After-sales
    Top brand quality, reliable and save 20% plus

    CONFIGURATION
    WEICHAI Engine
    Lonking Transmission
    Mechanical powershift control
    Lonking axles (dry type)
    Joystick working control (single -lever)
    Flexible shaft controlled caliper brake
    standard lift & bucket 3m3
    ROPS* FOPS cabin
    Mechanical instrument panel
    Air conditioner

    TECHNICAL PARAMETERS
    BasicBucket capcity2.3m3
    Rated payload4000kg
    Operating weight13000±300kg
    Traction force120±3kN
    Breakout force115±3kN
    L*W*H7270*2800*3300mm
    EngineManufacturer/ModelWEICHAI / WP6G175E22
    Rated power129kw/2200rpm
    Rated torque700N.m/1300rmp-1500rpm
    Bore * Stroke (mm)105*130mm
    No.of cylinders /Displacement6/6.75L
    Compression ratio17
    Air cleanerThree stage air cleaner
    Alternator70Amp
    Baterry2-24V/105Ah
    Starting motor24V/6kW
    Drive trainTransmission typePlanetary powershft tranmission
    Shift TypeMechanical powershift control
    Pressure of transmission1.1-1.5MPa
    Torque converterSingle-stage &duo- turbine ,4 element
    AxlesRigid (front)& Oscillating (Rear)
    Rear axle Oscillation (°)±10°
    DifferentialConventional
    Main reducerSpiral bevel gear 1-stage reduction
    Final reducerPlanetary reduction
    Tire20.5-25L-3 16PR TT
    Travel spped -forward11.5/36km/h
    Travel spped -reverse16km/h
    Brake systemService brakeSingle circuit caliper ,dry brake
    Setting pressure0.70-0.78MPa
    Parking brakeFlexible shaft conrolled calipe brake
    Emergency brakeFlexible shaft conrolled calipe brake
    Steering systemTypeHydaulic load sensor system
    Pumpgear pump 138L/min 2200rpm
    System pressure16MPa
    Steering angle±35°
    cylinder typedouble acting
    Hydarulic systemTypeJoystick control (single -lever)
    Pumpgear pump 110L/min .2200rpm
    Control valve2 Spool (bucket & boom )
    System pressure16MPa
    Cycle time (sec)11.5
    Service refill capacityFuel tank240L
    Hydraulic tank220/225(3rd spool)
    Crankshaft17L
    Transmission type46L
    Front axle/ rear axle23L

    OPTIONAL
    Mechanical shift working control
    Oil-bath air filter
    20.5R25 ** L-3TL
    sliding cabin window
    electric heating rear window
    lockable oil tank cap
    rear view camera
    bucket (3 pieces cutting edges )
    enlarged bucket 2.5m3

    Quality Lonking CDM843 wheel loader 4ton with 2.3m3 bucket Weichai WP6G175E22 engine for sale
