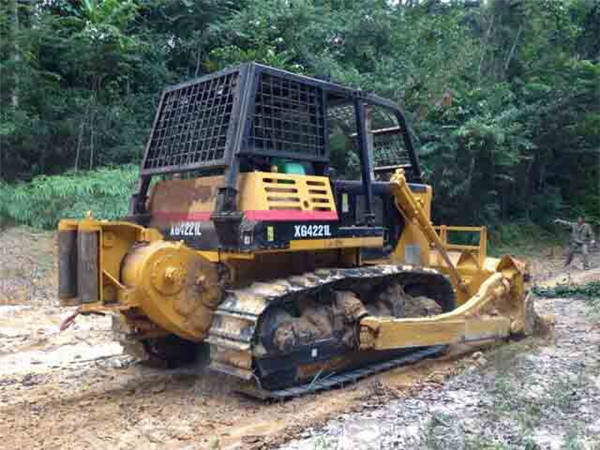

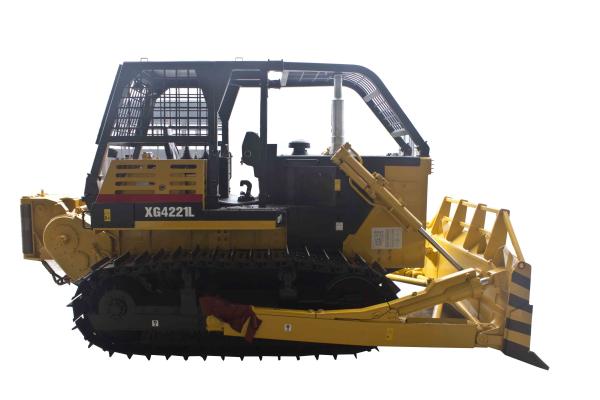

Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland

    Buy cheap Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland from wholesalers

    Buy cheap Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland from wholesalers
    • Buy cheap Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland from wholesalers
    • Buy cheap Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland from wholesalers
    • Buy cheap Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland from wholesalers
    • Buy cheap Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland from wholesalers

    Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland

    Ask Lasest Price
    Brand Name : XGMA
    Model Number : XG4221L
    Certification : ISO
    Delivery Time : 25 days after receiving deposit
    • Product Details
    • Company Profile

    Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland

    Chinese XG4221L forestry logging bulldozer with mechnical winch for Africa muddy woodland



    Technical feature:

    △Powerful, traction favorable, Cummins engine, high versatility

    △ Adopt widened tracks, reducing ground biya of bulldozer, guaranteed the bulldozer good through,good traction

    △ Using four o'clock elastic support console, operator comfort and good.

    △ Comprehensive protection protective frame, protective frame extend to protect the front cover, the driver trilateral plus nets to prevent branches hurt driver , to ensure safety

    △ Round protection hood, ensure adequate ventilation of the engine cooling system,meanwhile preventing mosquitoes, rotten leaves of tropical forests enter into the engine body.effect the work and heat dissipation of machine.

    △ Blade fence effectively protect front of the machine is not being hurt

    △ Mechanical winch is driven by a walking device through the output gearbox to drive the winch, the driving force, the inner tube rope maximum tension for 350kN, effectively improve work performance.


    TypeItemUnitXG4221L
    Operating weightkg28000
    EngineModel Cummins NT855-C280
    Rated speedr/min1800
    Rated powerKw162
    Traveling speedForward gearIKm/h0~3.6
    IIKm/h0~6.5
    IIIKm/h0~11.2
    Reserve gearIKm/h0~4.3
    IIKm/h0~7.7
    IIIKm/h0~13.2

    Dimension

    (Length*width*height)

    Mechanical winchMm6447x3725x3554
    Hydraulic winchMm5851x3725x3454
    Dozer device Blade widthMm3725
    Blade heightMm1315
    The max tilting of bladeMm>735
    Single shovel capacity6.4
    Other performance    Minimum ground clearanceMm405
    Track widthMm610
    Total weightKg27500
    Ground pressureMpa0.077
    Min.turing radiusMm3300
    Grade ability°30
    Productivity (theoretical value haul 40M)M³/h330
    Mechanical winchModelTJM20
    Rope diameter x lengthMm x m28x70
    Roller RallyKN350
    Rope working speedm/min0-15.9
    Clutch formHydraulic separation combined type
    WeightKg3000
