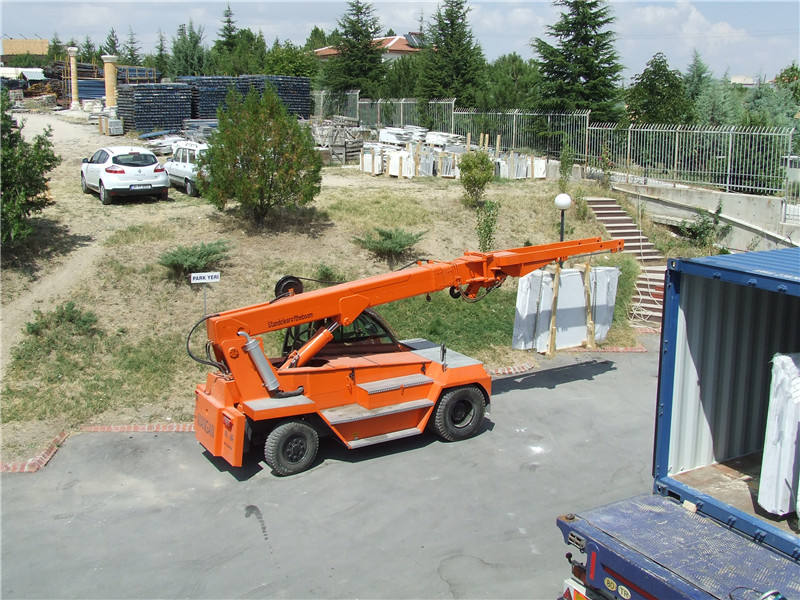

    12ton stone handling equipment telescopic crane for bundle marble salb loading

    Ask Lasest Price
    Brand Name : Wenyang Machinery
    Model Number : WY1200
    Certification : ISO9001 CE
    Payment Terms : T/T
    Supply Ability : 800sets/year
    Delivery Time : 1 month
    • Product Details
    • Company Profile

    12ton stone handling equipment telescopic crane for bundle marble salb loading

    12ton stone handling equipment telescopic crane for bundle marble salb loading

    Engine: China standard ,low oil consumption,high quality turbocharged engine,good power performance,,big torque reserves,has strong power,energy conservation and environmental friendly
    Steering axle:Adopt transverse oil cylinder type steering bridge,full hydraulic steering,flexible and light ,reliable
    Transmission: Transmission & Torque convert: Imported technology, reliable performance, convenient maintenance, smooth transmission, convenient operation Control system:Sense steering to make the work efficiency and reduce driver’s labor intensity
    Pipeline: High pressure oil line, impart resistance ,wear resistance and long service life
    Tyre: Sino-us joint brand, resistant to wear and sting ,high strength tires, bear heavy loaded-safe and reliable
    Cab: Damping luxury cab with sunroof, wide view and comfortable seats, flexible control
    Technical parameters:

    ModelUnitWY1200
    Rate load momentkg*m12000*0.5
    Rated load weight of the main hookkg12000
    Ratedload weight of the auxiliary hookkg4500
    Maximum height of hoistmm10000
    Full extending boommaximum working rangemm8000
    Radius changing time arm(raising/descending)s<18/14
    Retracting time(extending/descending)s<14.3/18.3
    Travel speed with loadkm/h<5
    Model of chassisExclusive chassis
    Dimension LxWxHm5*2.2*2.5
    Curb weightkg13800
    Wheel basemm3050
    Front/back wheel spanmm1490/1520
    Modelof tyre front/back9.00-20-14PR/9.00-16-16PR
    Front axleDriving and wheel reduction
    Rear AxleFully hydraulic steering
    Maximum speedkm/h25
    Minimum turning radiusmm<4300
    Minimum ground clearancemm250
    Maximum grade ability°20
    Model of the engine4BTA3.9-C100
    Maximum powerkw74
    Maximum torque(N*m)-(r.p.m)410/1500
    Fueltype hydraulic systemL-HM46 Anti-wera hydraulic oil
